The Wave Dragon Floating Platform

Reliable, scalable and efficient energy production

Overview

Wave Dragon builds on proven technology and a surprisingly simple concept. The reservoir platform is constructed in offshore-grade reinforced concrete with a guaranteed life of 50+ years. Very little offshore inspection and maintenance is required. The stable platform ensures easy access even in rough seas.

The power plant operates autonomously, utilising AI. It is monitored and can be controlled remotely through an advanced SCADA system.

How it works

How Wave Dragon produces power

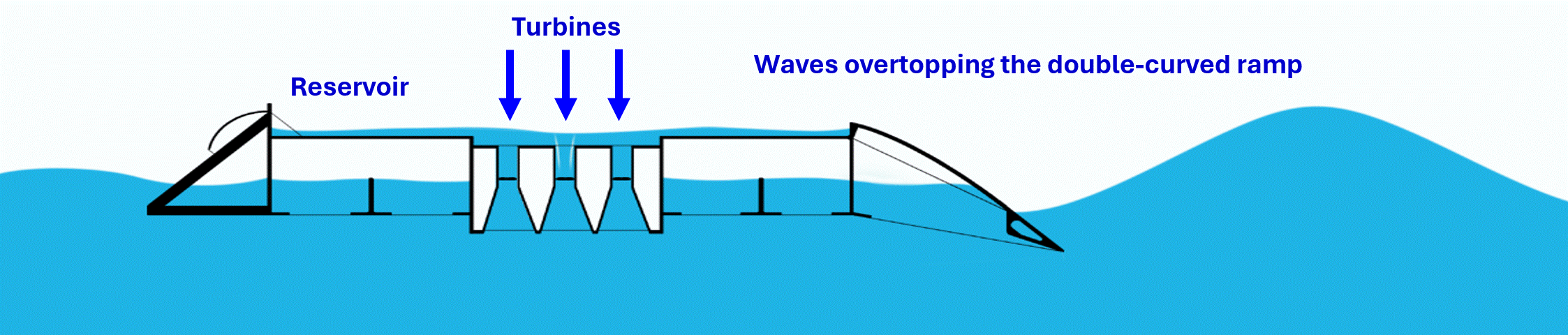

Waves overtop the ramp, gravity does the rest.

1

Overtopping

Water overtops the ramp and flows into the reservoir (above sea level).

2

Gravity

Gravity makes the water move towards the sea surface again.

3

Turbines

The water is guided through the hydro turbines.

4

Electricity

The turbines produce electricity.

The platform

Built for the open ocean

Proven technology and a surprisingly simple concept.

Durability

Offshore-grade concrete

The reservoir platform is constructed in offshore-grade reinforced concrete with a guaranteed life of 50+ years.

Maintenance

Minimal offshore maintenance

Very little offshore inspection and maintenance is required. The stable platform ensures easy access even in rough seas.

Automation

Autonomous operation

The power plant operates autonomously, utilising AI. It is monitored and can be controlled remotely through an advanced SCADA system.

Key components

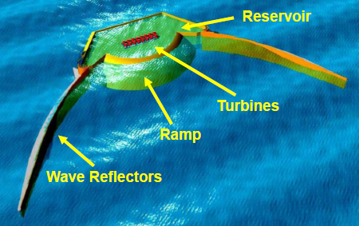

4 Key Components of
the Wave Dragon Technology

Four simple parts working together to capture and convert wave energy.

Wave reflectors

Reflector wings mounted on either side of the reservoir channel the waves towards the central ramp, increasing the amount of energy captured.

Ramp

Waves overtop the double-curved ramp into the reservoir. Pressurised air chambers underneath the unit optimise the ramp crest height in accordance with the actual sea state, increasing power production.

Reservoir

The water is held in the reservoir above sea level before gravity moves it back towards the sea surface.

Turbines

The water is guided through the hydro turbines, which produce electricity. They are the only moving parts on the unit.

Turbines

Wave Dragon uses simplified Kaplan turbines

The only moving parts are the turbine generators. Kaplan hydro turbines are a well-known eco-friendly technology with 100+ years track record. Wave Dragon uses simplified Kaplan turbines with fixed inlet guide vanes and propeller blades. The generator is directly coupled to the runner.

Variable speed is controlled by measuring the actual pressure head over the turbines, ensuring constant efficiency of more than 90%. Turbines are maintained onshore every 5 years in summer when wave energy is lower, so there is no loss of power production due to refurbishment.

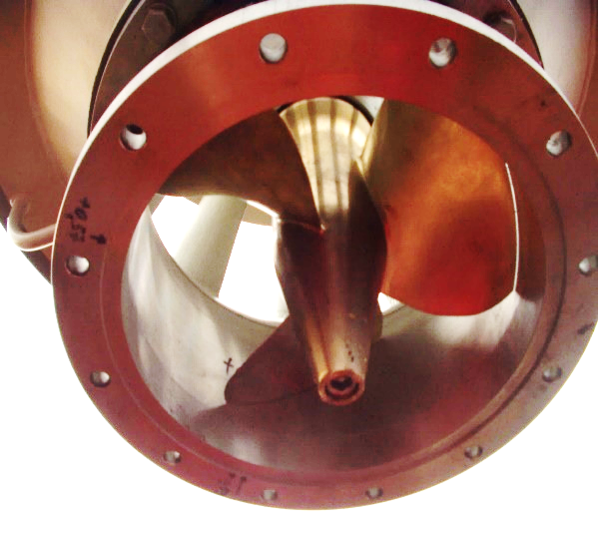

Simplified Kaplan hydro turbine used by Wave Dragon

100+ yrs

Kaplan track record

>90%

Efficiency

Wave and wind

The Wave Dragon platform
is ideal in combination
with wind turbines

A stable floating foundation that stays calm even in harsh weather

The Wave Dragon platform is highly suitable as a floating foundation for wind turbines. The platform offers significant stability. The massive weight of the platform, the water in the reservoir and the pressurised air chambers ensure that the platform stays calm even in harsh weather. The device is easily accessible for maintenance.

Unit sizes

Five unit sizes

The Wave Dragon power plant units come in 5 capacity sizes, of which some outrank today's largest wind turbines.

3 MW

10 GWh/yr

Wave climate

12 kW/m

Wave energy

1,5 MW

Wind turbines

2 × 0,75 MW

8 MW

28 GWh/yr

Wave climate

24 kW/m

Wave energy

4 MW

Wind turbines

2 × 2,00 MW

14 MW

48 GWh/yr

Wave climate

36 kW/m

Wave energy

7 MW

Wind turbines

2 × 3,50 MW

24 MW

83 GWh/yr

Wave climate

48 kW/m

Wave energy

12 MW

Wind turbines

2 × 6,00 MW

38 MW

131 GWh/yr

Wave climate

60 kW/m

Wave energy

19 MW

Wind turbines

2 × 9,50 MW

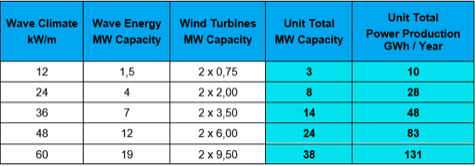

Wave climate kW/m

Wave energy MW

Wind turbines MW

Unit total MW

Production GWh / year

12

1,5

2 × 0,75

3

10

24

4

2 × 2,00

8

28

36

7

2 × 3,50

14

48

48

12

2 × 6,00

24

83

60

19

2 × 9,50

38

131

Wave Dragon features the largest unit sizes in the floating offshore energy industry

Easily scalable to utility-size power plant capacity
